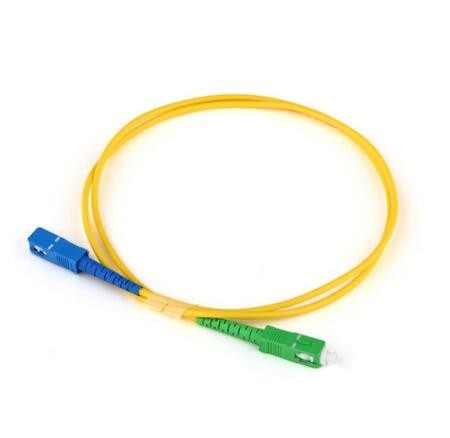

SC UPC APC G652D G657A PVC LSZH Fiber Optic Patch Cord

Name: SC UPC APC G652D G657A PVC LSZH Fiber Optic Patch Cord
Brand: Weiroct
Price: 2 USD

China SC UPC APC G652D G657A PVC LSZH Fiber Optic Patch Cord wholesale

Brand Name : Weiroct

Model Number : SM MM

Certification : ISO-9001

Place of Origin : China

MOQ : 50pcs

Price : USD2-12/set

Payment Terms : T/T, L/C, Western Union, MoneyGram

Supply Ability : 1000pcs/day

Delivery Time : 5~20 DAYS

Packaging Details : 250pcs/Carton

Product Type : SC/APC to SC/APC Singlemode Simplex LSZH fiber optic patch cord

Use : FTTH

Jacket Material : LSZH/PVC

Connector Type : SC/LC/FC/ST/MTRJ/MU

Cable O.D. : 2.0/3.0mm

Fiber Mode : OM1

Fiber Core : 12F, 24F

Cable Length : 1m/3m/5m/15m/50m/60m/80m/100m or Customized

Wavelength : 1310/1550nm

Quality Control : 100% Test Before Delivery

Contact Now

SC UPC APC G652D G657A PVC LSZH customized fiber optic patch cord

Product Description of SC/APC to SC/APC Singlemode Simplex LSZH fiber optic patch cord:

* The fiber optic patch cord mainly used on patch panel or for the connection between outlets and terminal equipment.

* It also widely used for high bit rate data transmission,telecommunications,tesing instruments,active device terminations,LAN/WAN and FTTX.
 * Fiber Optic Patch cords are ultra reliable components featuring low insertion loss and return loss.

* They come with your choice of simplex or duplex cable configuration .

* Extensive range of fiber patch cables are terminated with state-of-the-art connectors and available in any combination of ST, SC, LC ,FC and

  MTRJ with PC, UPC or APC polish types to meet your standard or custom configurations.

Features of SC/APC to SC/APC Singlemode Simplex LSZH fiber optic patch cord:

1. Low insertion loss and back reflection loss,

2. Good repeatability,

3. Good interchangeability

4. High temperature stability

5. Good durability

6. Superior Quality Standard PC/UPC/APC Polishing

Specification

Item	Unit	LC/SC/FC/ST Fiber Patch Cord
Item	Unit	SM			MM
Fiber Diameter	UM	9/125			65.5/125	50/125
Polishing		PC	UPC	APC	PC	PC
Insertion Loss	dB	≤0.2	≤0.15	≤0.2	≤0.1	≤0.1
Return Loss	dB	≥55	≥50	≥60	≥35dB	≥35dB
Insert-pull Test	dB	≤0.2	≤0.2	≤0.3	≤0.15	≤0.15
Interchangeability	dB	≤0.1	≤0.1	≤0.15	≤0.1	≤0.1
Temperature Range	℃	-40~+80
Durability(1/Matings)	≥1000
Tensile Strength (N)	≥90 (Φ3.0), ≥70 (Φ2.0), Φ0.9
Fiber	9/125um, 50/125um,62.5/125um,ect
Diameter	0.9mm 2.0mm, 3.0mm etc
Cores	Simplex, duplex, 4cores, 6cores, 8cores, 12cores etc

SC UPC APC G652D G657A PVC LSZH Fiber Optic Patch Cord

Other type

SC UPC APC G652D G657A PVC LSZH Fiber Optic Patch Cord

FAQ

Q1. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity.
Q3. Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
B. Secondly We quote according to your requirements or our suggestions.
C. Thirdly customer confirms the samples and places deposit for formal order.
D. Fourthly We arrange the production.
