GYTS ,GYFTY GJYXCH ,GYXTW ,FTTH drop cable
Our company introduction
We are Optical fiber cables manufactures located in Wuhan city,China, we produce Optical Fiber cables ,including Indoor,outdoor,FTTH, and special optic fiber cables. we also supply telecom accessories,example PLT,Patchcord,fiber distribution box,optical transceiver Module,etc.f
We have passed ISO 9001:2015 certificate ,welcome to contact us if needed.
Features
Good mechanical and environmental characteristics
Flame retardant characteristics meet the requirements of relevant standards.
The mechanical characteristics meet the requirements of relevant stands
Soft, flexible easy to splice and with big capacity data transmission
Optical Characteristics
| | | G.652 | G.655 | 50/125μm | 62.5/125μm |
Attenuation
(+20°C) | @850nm | | | ≤3.5 dB/km | ≤3.5 dB/km |
| @1300nm | | | ≤1.5 dB/km | ≤1.5 dB/km |
| @1310nm | ≤0.45 dB/km | ≤0.50 dB/km | | |
| @1550nm | ≤0.30 dB/km | ≤0.50dB/km | | |
| Bandwidth (Class A) | @850nm | | | ≥500 MHz·km | ≥200 MHz·km |
| @1300nm | | | ≥1000 MHz·km | ≥600 MHz·km |
| Numerical Aperture | | | 0.200±0.015NA | 0.275±0.015NA |
| Cable Cut-off Wavelength λcc | ≤1260nm | ≤1480nm | | |
Fiber Parameters
| No. | Items | Unit | Specification |
| G.657A1 |
| 1 | Mode Field Diameter | 1310nm | μm | 9.0±0.4 |
| 1550nm | μm | 10.1±0.5 |
| 2 | Cladding Diameter | μm | 124.8±0.7 |
| 3 | Cladding Non-Circularity | % | ≤0.7 |
| 4 | Core-Cladding Concentricity Error | μm | ≤0.5 |
| 5 | Coating Diameter | μm | 245±5 |
| 6 | Coating Non-Circularity | % | ≤6.0 |
| 7 | Cladding-Coating Concentricity Error | μm | ≤12.0 |
| 8 | Cable Cutoff Wavelength | nm | λcc≤1260 |
| 9 | Attenuation (max.) | 1310nm | dB/km | ≤0.35 |
| 1550nm | dB/km | ≤0.21 |
| 10 | Macro-Bending Loss | 1turn×10mm
radius @1550nm | dB | ≤0.75 |
1turn×10mm
radius@1625nm | dB | ≤1.5 |

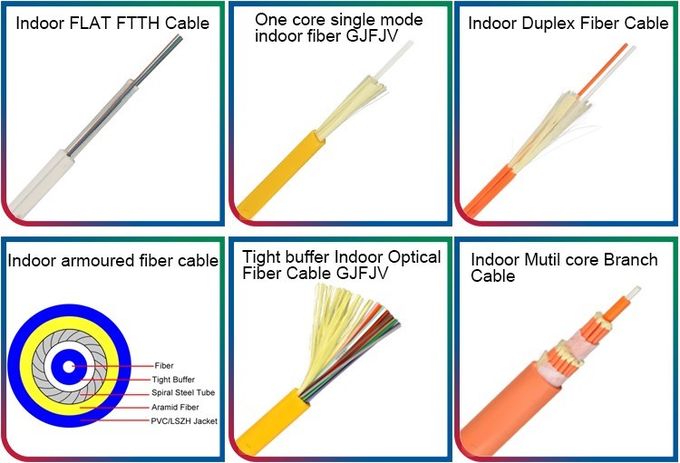

Types:
Package
FAQ
1.Are you the real manufacturer?
We are the real manufacturer with 19 year’s exprerience.
2.What’s the MOQ?
The MOQ is 1km.
3.What’s delivery time?
The general delivery time is 5-9 days after order confirmed. It depends on the order quantity.
4.How to Store the Optical Fiber Cable Properly?
Store the drum indoor before using, the drum should place sideways not on the end.
5. Can you supply customized products and logo?
Yes. We supply OEM service. You can send us your drawing.
6.What’s your payment terms?
We accept T/T,L/C,Western Union,D/P etc.
