Single Mode FTTH Fiber Drop Cable 2 4 6 8 12 16 24 Core

Brand Name : WRC

Model Number : GYTS ,GYTA,GYFTA,GYFTY, GJYXCH, GYXTW,ADSS....

Certification : ISO9001,SGS,ROHS,CIQ

Place of Origin : China

MOQ : 1KM

Price : USD0.50-USD18/Km

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 2000 Kilometre / Day

Delivery Time : 5~20 DAYS

Packaging Details : 2-5KM/Roll/Carton Box

Jacket : LSZH/PVC/HDPE

Outer Sheath Color : black,white,or customized

Fiber Type : SM,MM,OM3,OM4

Application : Telecommunication,Duct,Telecom

Strength Member : Aramid Yarn/Metal wire

Core : 4/6/8/12/24/48/96

Product Name : Made in China FTTH fiber drop cable 2 / 4 / 6 / 8 / 12 / 16 / 24 Core Single Mode Outdoor Fiber Optical Cable

Contact Now

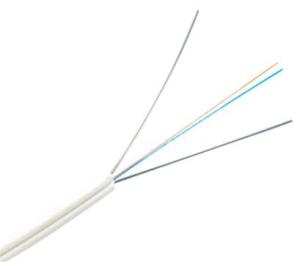

Made in China FTTH fiber drop cable 2 / 4 / 6 / 8 / 12 / 16 / 24 Core Single Mode Outdoor Fiber Optical Cable

Feature

1. Soft and bendable, easy to deploy and maintenance.

2. Smaller diameter, Light weight, and high practicability.

3. Fiber reinforced plastic as the strength member ensures excellent anti-electromagnetic performance.

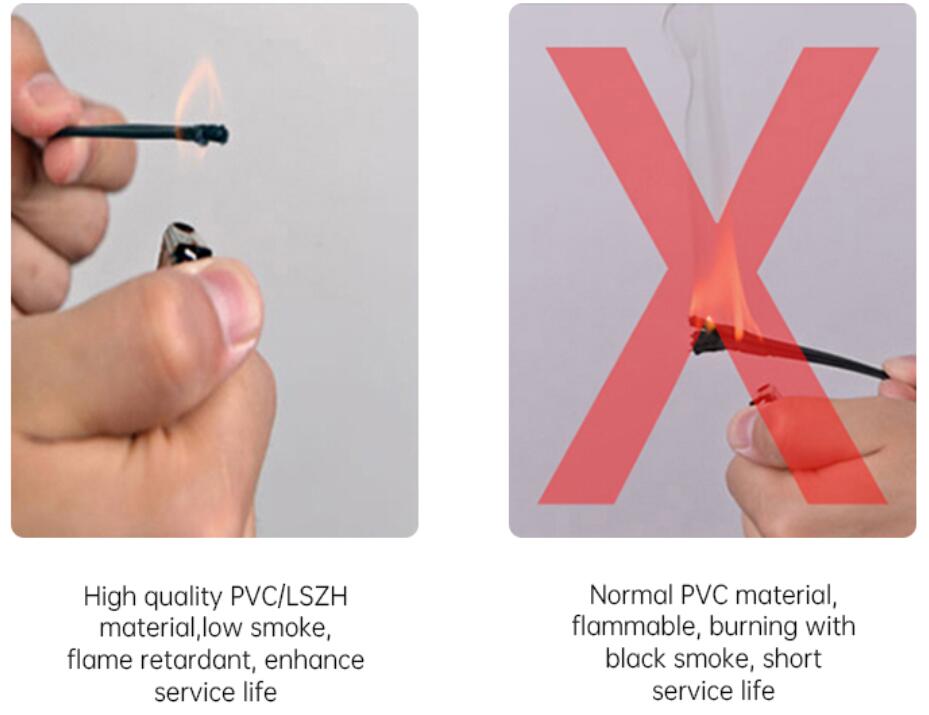

4. Environmental protection- Low smoke, zero halogen and flame retardant sheath.

Applications

1. Used in access network or as access cable from outdoor to indoor in customer premises network;

2. Used as access building cable in premises distribution system, especially used in indoor or outdoor

Optical Characteristics

		G.652	G.655	50/125μm	62.5/125μm
Attenuation (+20°C)	@850nm			≤3.5 dB/km	≤3.5 dB/km
	@1300nm			≤1.5 dB/km	≤1.5 dB/km
	@1310nm	≤0.45 dB/km	≤0.50 dB/km
	@1550nm	≤0.30 dB/km	≤0.50dB/km
Bandwidth (Class A)	@850nm			≥500 MHz·km	≥200 MHz·km
Bandwidth (Class A)	@1300nm			≥1000 MHz·km	≥600 MHz·km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength λcc		≤1260nm	≤1480nm

Fiber Parameters

No.	Items		Unit	Specification
No.	Items		Unit	G.657A1
1	Mode Field Diameter	1310nm	μm	9.0±0.4
1	Mode Field Diameter	1550nm	μm	10.1±0.5
2	Cladding Diameter		μm	124.8±0.7
3	Cladding Non-Circularity		%	≤0.7
4	Core-Cladding Concentricity Error		μm	≤0.5
5	Coating Diameter		μm	245±5
6	Coating Non-Circularity		%	≤6.0
7	Cladding-Coating Concentricity Error		μm	≤12.0
8	Cable Cutoff Wavelength		nm	λcc≤1260
9	Attenuation (max.)	1310nm	dB/km	≤0.35
9	Attenuation (max.)	1550nm	dB/km	≤0.21
10	Macro-Bending Loss	1turn×10mm radius @1550nm	dB	≤0.75
10	Macro-Bending Loss	1turn×10mm radius@1625nm	dB	≤1.5

Single Mode FTTH Fiber Drop Cable 2 4 6 8 12 16 24 Core

More products

FAQ

Q1: Are you manufacturer?
A: Yes, we are manufacturer since the year 2002.

Q2: What's delivery time?
A: Mass production time needs 1-2 week.

Q3: What’s your payment terms?
A: We accept all payments , such as LC,TT,DP,DA,Paypal,Western Union,Money Gram
Q4: What kind of cable do you produce?
A: We’re specialized in manufacturing Coaxial Cable, such as RG Series and Trunk Cable, Optical Fiber Cable, such as ADSS and FTTH, and Lan Cable, such as CAT5E, CAT6 and CAT7.
Q5: What’s your annual capability?
A: We are specialized in manufacturing coaxial cable, optical fiber cable and Lan Cable, whose annual output reaches to 350,000 kilometers, 2 million kilometers’ core and 600,000 boxes separately.
Q6: Do you have OEM and ODM?
A: Yes, we have.
Q9: May I get free sample?
A: Normally, our samples for charger are free. If the sample quantity is large, it will be charged. However, the sample fee will be refunded when customer place bulk orders for that item.
Q10: What's your trade term ?
A: We can accept FOB, CIF, CFR, EXW, etc.

Application
1. FTTH Indoor and Outdoor
2. Suitable for aerial and indoor laying method.
3. Long distance and local area network communication.
