Gjyxfch Self Supporting With Frp Or Steel Wire Strengthen 1 2 Core Fiber Cable

Name: Gjyxfch Self Supporting With Frp Or Steel Wire Strengthen 1 2 Core Fiber Cable
Brand: WEIRUO
Price: 0.50 USD

China Gjyxfch Self Supporting With Frp Or Steel Wire Strengthen 1 2 Core Fiber Cable wholesale

Brand Name : WEIRUO

Model Number : GJYXFCH

Certification : ISO9001

Place of Origin : China

MOQ : 1KM

Price : USD0.50-USD15/Km

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 2000 Kilometre / Month

Delivery Time : 5~20 DAYS

Packaging Details : 2KM/Roll/Carton Box

Jacket : LSZH/PVC/HDPE

Outer Sheath Color : BLACK/WHITE

Fiber Type : G.657A1, G.657A2

Application : Telecommunication

Strength Member : Aramid Yarn/Metal wire

Core : 1/2

Product Name : Gjyxfch Self-Supporting With Frp Or Steel Wire Strengthen 1 2 Core Fiber Cable

Contact Now

Gjyxfch Self-Supporting With Frp Or Steel Wire Strengthen 1 2 Core Fiber Cable

Product Description:

The fibers are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of corrugated steel tape. Between the corrugated steel tape and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The cable is completed with a polyethylene (PE) sheath.

Features:

· Good mechanical and temperature performance.
· High strength loose tube that is hydrolysis resistant.
· Special tube filling compound ensure a critical protection of fiber.
· Crush resistance and flexibility.
· Two parallel steel wires ensure tensile strength.
· Small diameter, light weight and friendly installation.

Application

Used in indoor cabling, especially used for FTTH
Used as access building cable

Fiber Characteristic:

Cable Diameter(mm)	Indoor FTTH Drop Cable	Outdoor FTTH Drop Cable
	2.0×3.0	2.0×5.0
Insertion Loss(dB)	≤0.2	≤0.2
Return Loss(dB)	≥50	≥60
Cable Diameter(mm)	2.0mm,3.0mm
Durability(dB)	1000matings,＜0.3
Interchangeability (dB)	＜0.2
Operating temperature(℃)	－40~＋85

1.Features :Low insertion loss, high return loss, Good Repeatability and interchange ability .Applications: Applied for FTTH project
 2.The optical signal transmission is uniform the environment is stable and it can meet the transmission requirements of different wavelengths

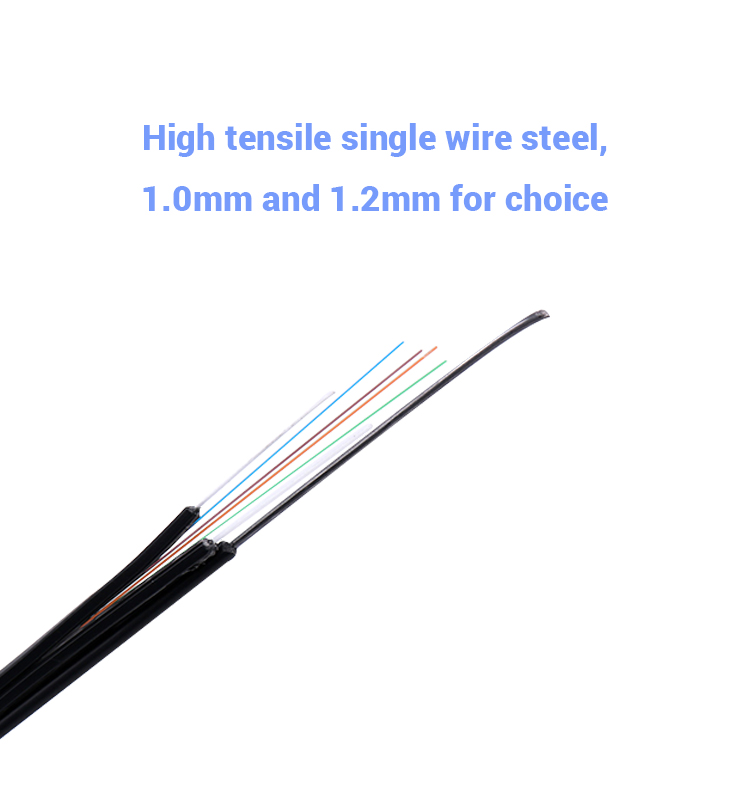

 3.High tensile single wire steel, 1.0mm and 1.2mm for choice
 4. galvanized steel swire stranded, higher tensile, flexible
 5.High quality LSZH material cable cheath, very smooth surface, anti-UV, flame-retsistant
 6.Bend-insensitive single mode fiber, ITU. G.657A fiber, Standard fiber length 24km/roll and 48km/roll.
 Production and Inspection Control
 1) Polishing:Precise polishing to make sure there is no scratch on the endface, and all the technical data are compliant with or better than standard paremeters
 2) End face Inspection: Each end face is tested to ensure the quality and transmission effect of optical fiber
 3) Attenuation Testing: After insertion loss and return loss test, only the tested qualified products are allowed to be shipped out.

Gjyxfch Self Supporting With Frp Or Steel Wire Strengthen 1 2 Core Fiber Cable

More products

FAQ

Q1: Are you manufacturer?
A: Yes, we are the manufacturer since the year 2001.

Q2: What's delivery time?
A: Mass production time needs 1-2 week.

Q3: What’s your payment terms?
A: T/T, L/C.

Q4: What kind of cable do you produce?
A: We’re specialized in manufacturing Coaxial Cable, such as RG Series and Trunk Cable, Optical Fiber Cable, such as ADSS and FTTH, and Lan Cable, such as CAT5E, CAT6 and CAT7.

Q5: What’s your annual capability?
A: We are specialized in manufacturing coaxial cable, optical fiber cable and Lan Cable, whose annual output reaches to 350,000 kilometers, 2 million kilometers’ core and 600,000 boxes separately.

Q6: Do you have OEM and ODM?
A: Yes, we could provide professional suggestions and best solutions to your requirements.

Q9: May I get free sample?
A: Normally, our samples for charger are free. If the sample quantity is large, it will be charged. However, the sample fee will be refunded when customer place bulk orders for that item.

Q10: What's your trade term ?
A: We can accept FOB, CIF, CFR, EXW, etc.
