FTTH LSZH Jacket G657A Fiber Optic Cable GJXH/GJXFH Flat Cable

Brand Name : WRC

Model Number : GJXH

Certification : ISO9001

Place of Origin : China

MOQ : 1KM

Price : USD0.41-USD15/Km

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 50000 Kilometre / Month

Delivery Time : 5~20 DAYS

Packaging Details : 2KM/Roll/Carton Box

Jacket : LSZH/PVC/HDPE

Outer Sheath Color : Printed

Fiber Type : G.657A1, G.657A2

Application : Telecommunication

Strength Member : Aramid Yarn/Metal wire

Core : 1/2

Product Name : FTTH with LSZH jacket G657A fiber optic cable GJXH/GJXFH flat cable

Contact Now

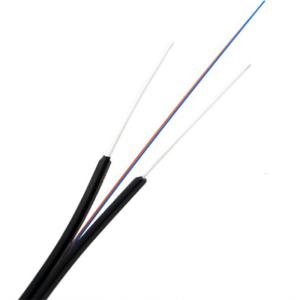

FTTH With LSZH Jacket G657A Fiber Optic Cable GJXH/GJXFH Flat Cable

Product Description:

• Flex durable fiber to provide greater bandwidth and enhance network transmission characteristics

• Two parallel metallic strength member to protect the fiber and provide adequate tension and pressure

• single metallic strength member makes optical cable having good tensile performance

• Optical cable has simple structure, light weight and strong practicability

• unique groove design, Easy peeled off and splice, simplify the installation and maintenance

• Low smoke halogen-free flame-retardant sheath, pro-environment

Characteristics:

Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property.
Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber.
Simple structure, light weight and high practicability.
Novel flute design, easily strip and splice, simplify the installation and maintenance.
Low smoke, zero halogen and flame retardant sheath.

Technical Parameters:

Fiber Count	Cable Size (mm)	Cable Weight (kg/km)	Bending Radius (mm)		Tensile Strength (N)		Cruch Resistance (N/100mm)
Fiber Count	Cable Size (mm)	Cable Weight (kg/km)	Static	Dynamic	Long term	Short term	Long term	Short term
2	(2.0±0.1) x (3.0±0.1)	10	15D	30D	40	80	500	1000

Optical Characteristics:

		G.652	G.657
Attenuation(+20°C)	@850nm
	@1300nm
	@1310nm	≤0.45dB/km	≤0.45dB/km
	@1550nm	≤0.30dB/km	≤0.30dB/km
Bandwidth (Class A)	@850nm
	@1300nm
Numerical Aperture
Cable Cut-off Wavelength λcc		≤ 1260nm	≤ 1260nm

Transport/Storage/Operating Temperature: -20°C ~ +60°C

FAQ

1. Are you the real manufacturer?
Us. We are the real manufacturer with 15 year’s history.

2. What’s the MOQ?
Us. The MOQ of Fiber Optic cable is 1km.

3. What’s delivery time?
Us. The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.

4. How to Store the Optical Fiber Cable Properly?
Us. Store the drum indoor before using, the drum should place sideways not on the end.

5. Can you supply customized products and logo?
Yes. We supply OEM service. You can send us your drawing.
