Outdoor underground armored 6-288 core fiber optic cable GYTA

Brand Name : WRC

Model Number : outdoor underground armored 6-288 core fiber optic cable GYTA

Certification : ISO9001,SGS

Place of Origin : China

MOQ : 5km

Price : USD0.55-USD14/Km

Payment Terms : Western Union, MoneyGram

Supply Ability : 499Km per day

Delivery Time : 5-25days

Packaging Details : Export Packing

Application : Telecommunication,Duct,Telecom,Network

Fiber type : G652D,single mode or multi mode,50/125,62.5/125,OM3

Number of conductors : ≥ 10,2,4

Type : Single Mode g652d,PC/UPC/APC,Outdoor Optical Cable Aerial,Singlemode & Multimode

Fiber count : 2-288 core

Color : Black,Blue,Grey,Customized,Green

Jacket : PE,MDPE,LSZH,PVC,PVC outer sheath

Product name : stranded loose tube armored cable,Outdoor Optic Fiber Cable

Length : 2km or customized length

Jacket material : PE,LSZH,TPU,LSZH OR PVC

Name : Outdoor armor fiber optic cable

Oem : Available

Installation : self- supporting Aerial,aerial,Aerial & Duct,aerial/tube/duct

Structure : Loose tube,Unitube

Operating temperature : -40~75

Sheath material : LSZH,HDPE

Strength member : steel wire

Fiber color : Blue,Orange,Brown,Aqua,Grey

Contact Now

Description: Outdoor underground armored 6-288 core fiber optic cable GYTA

1.The fibers is 250µm, are positioned in a loose tube made of a high modulus plastic . The tubes are filled with a water-resistant filling compound.

2.A steel wire, sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member.

3.Tubes (and fillers) are stranded around the strength member into a compact and circular cable core.

4.An Aluminum Polyethylene Laminate (APL) is applied around the cable core, which is filled with the filling compound to protect it from water ingress.

5.Then the cable core is covered with a thin PE inner sheath. After the PSP is longitudinally applied over the inner sheath, the cable is completed with a PE outer sheath.

Technical properties

No. of cable		12		24	48
Fiber Model		G.652D
Design (StrengthMember+Tube&Filler)		1+5
Central Strength Member	Material	Steel Wire
	Diameter(±0.5)mm	1.4
Loose Tube	Material	PBT
	Diameter(±0.06)mm	1.72	1.72		2.0
	Thickness(±0.03)mm	0.30	0.30		0.32
	The Max.Core NO./Tube	6	6		12
Filler Rope	Material	LDPE
	Diameter(±0.06)mm	1.7	1.7		2.0
	NO.	3	1		1
Moisture Barrier	Material	Polymer Coated Aluminum Tape
	Thickness(±0.03)mm	0.20
Inner Sheath	Material	MDPE
	Thickness(±0.2)mm	0.9
Armoring	Material	Polymer Coated Steel Tape
	Thickness(±0.2)mm	0.22
Water Bloaking Layer	Material	Filling Compound
Outer Sheath	Material	MDPE
	Thickness(±0.2)mm	1.8
Cable Diameter(±0.5)mm		12.5	12.5		13.1
Cable Weight(±10)kg/km		152	167		167
Attenuation	1310nm	0.35dB/ km
	1550nm	0.21dB/ km
Min. bending radius	Without Tension	12.5×Cable-φ
	Under Maximum Tension	25.0×Cable-φ
Temperature range (℃)	Installation	-20~+60
	Transport&Storage	-40~+70
	Operation	-40~+70

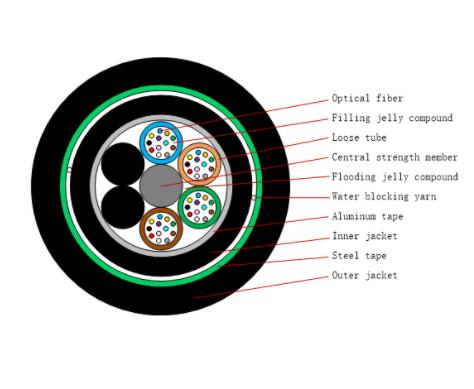

Drawings Outdoor underground armored 6-288 core fiber optic cable GYTA

More customized products

Outdoor underground armored 6-288 core fiber optic cable GYTA Images
