G652D PE Underground Anti Outdoor Optical Fiber Cable GYTS 2-144 Core

Brand Name : WRC

Model Number : Crush Resistance 2-144 Cores GYTS Optic Fiber Light-armored Cable

Certification : ISO9001

Place of Origin : China

MOQ : 5km

Price : USD0.55-USD14/Km

Payment Terms : Western Union, MoneyGram, Western Union

Supply Ability : 500Km per day

Delivery Time : 5-25days

Packaging Details : Standard Export Packing

Application : Telecommunication,Duct,Telecom,Network

Fiber type : G652D,single mode or multi mode,50/125,62.5/125,OM3

Type : Single Mode g652d,PC/UPC/APC,Outdoor Optical Cable Aerial,Singlemode & Multimode

Fiber count : 2-144 core

Color : Black,Blue,Grey,Customized,Green

Jacket : PE,MDPE,LSZH,PVC,PVC outer sheath

Length : 2km or customized length

Jacket material : PE,LSZH,TPU,LSZH OR PVC

Installation : self- supporting Aerial,aerial,Aerial & Duct,aerial/tube/duct

Structure : Loose tube,Unitube

Operating temperature : -40~75

Sheath material : LSZH,HDPE

Strength member : steel wire

Fiber color : Blue,Orange,Brown,Aqua,Grey

Contact Now

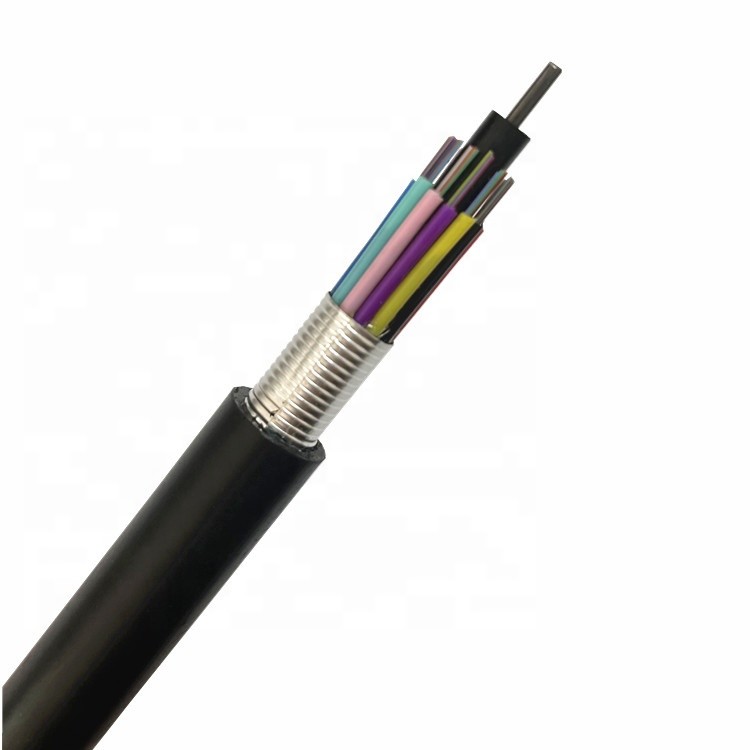

2-144 core G652D PE underground GYTS Anti outdoor optical fiber cable

Description:

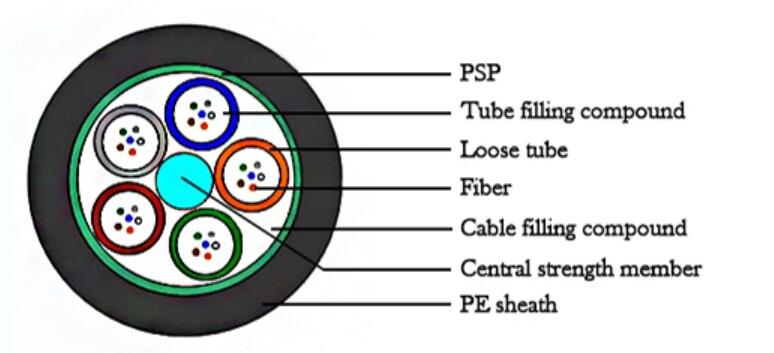

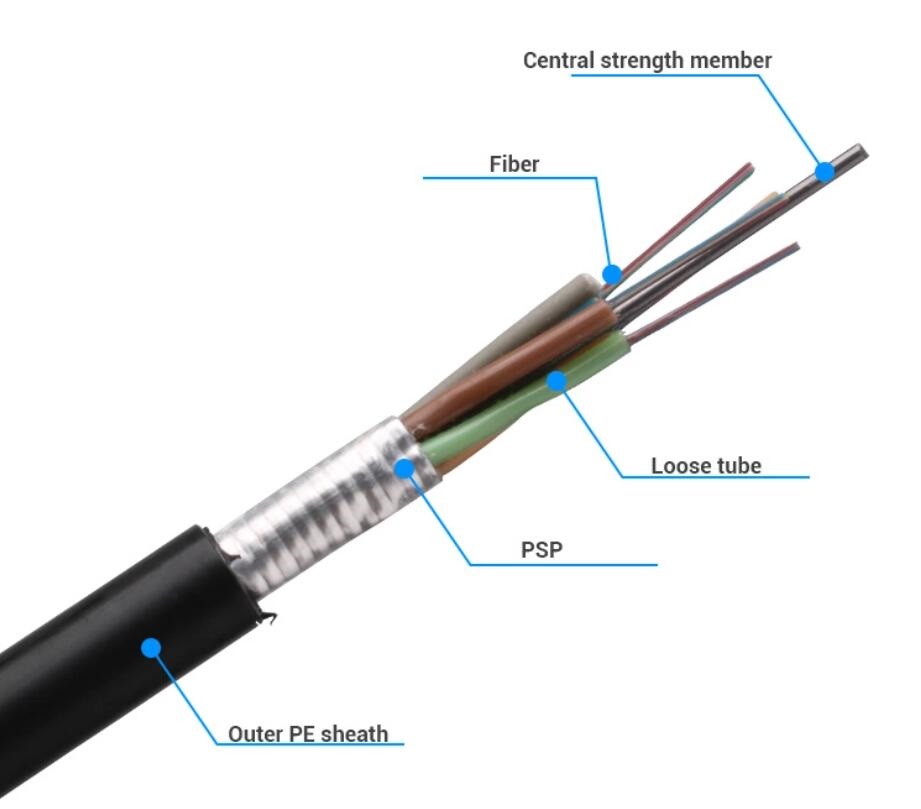

GYTS The fibers,250μmm,are position in a loose tube made of a high modulus plastic.The tube are filled with a water resistant filling compound.A steel wire,sometimes sheathed with ployethylene(PE) for cable with high fiber count,locates in the center of core as a metallic strength member.

Tubes (and fillers) are stranded around the strength member into a compact and circular cable core.The PSP is longitudinally applied over the cable core,which is filled with filling compound to protect it from water ingress,the cable is completed with a PE sheath.

Application:

Adopted to Outdoor distribution.
Suitable for aerial pipeline laying method.
Long distance and local area network communication.

Characteristics
· Good mechanical and temperature performance
· High strength loose tube that is hydrolysis resistant
· Special tube filling compound ensure a critical protection of fiber
· Crush resistance and flexibility
· PE/LSZH sheath protects cable from ultraviolet radiation
· 100% cable core filling

Technical properties

Item Name	GYTS Fiber Optic Cable
Place of Origin	Wuhan,China
Model Number	GYTS
Brand Name	WRC
Fiber Type	Single mode ITU-T G652D
Fiber No.	2-288 cores
Strength Member	Central Steel Wire/Metal
Material of Jacket	Black Polyethylene (PE)
Cable Structure	Stranded Loose Tube
Certificate	ISO9001/CE/RoHS/CE
Storing Temperature	-40℃ to +70℃
Application	Duct/Aerial

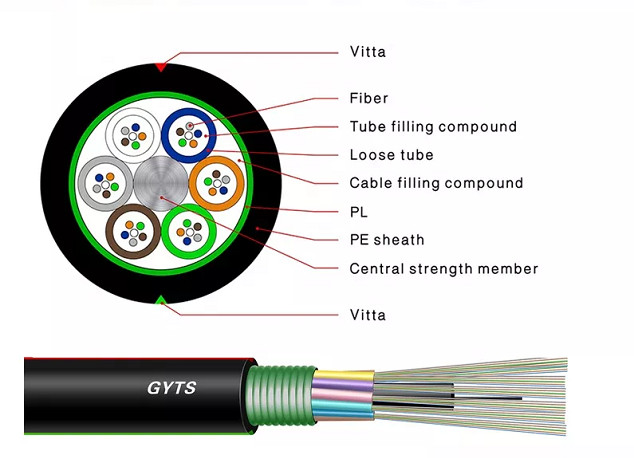

Drawings Crush Resistance 2-144 Cores GYTS Optic Fiber Light-armored Cable
G652D PE Underground Anti Outdoor Optical Fiber Cable GYTS 2-144 Core

G652D PE Underground Anti Outdoor Optical Fiber Cable GYTS 2-144 Core

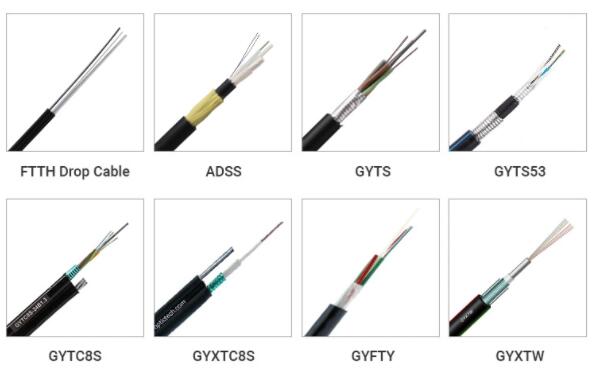

More customized products
