G.652D G.657A LSZH PVC Jacket 2 Core FTTH Optical Fiber Drop Cable

Brand Name : WRC

Model Number : FTTH Indoor Fiber Optical Drop Cable G.652D G.657A LSZH PVC Jacket 2 Core Communication Cable

Certification : ISO9001

Place of Origin : China

MOQ : 1KM

Price : USD0.43-USD15/Km

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 50000 Kilometre / Month

Delivery Time : 5~20 DAYS

Packaging Details : 2KM/Roll/Carton Box

Jacket : LSZH/PVC/HDPE

Outer Sheath Color : Orange

Fiber Type : OM3

Application : Telecommunication

Strength Member : Aramid Yarn/Metal wire

Core : 4/6/8/12

Product Name : FTTH Indoor Fiber Optical Drop Cable G.652D G.657A LSZH PVC Jacket 2 Core Communication Cable

Contact Now

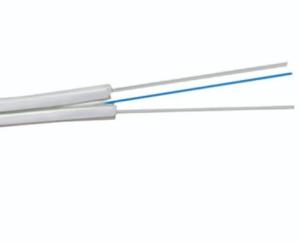

FTTH Indoor Fiber Optical Drop Cable G.652D G.657A LSZH PVC Jacket 2 Core Communication Cable

Characteristic:

· Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property;
· Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber;
· Simple structure, light weight and high practicability;
· Novel flute design, easily strip and splice, simplify the installation and maintenance

· Low smoke, zero halogen and flame retardant sheath.

Fiber Characteristic:

Cable code	Fiber Count	Cable diameter mm	Cable weight Kg/km	Tensilse Strength Long/Short term N	Crush Resistance Long/Short term N	Bedning Radius Dynamic/Static mm
GJXFH-1	1	(2.0±0.2)×(3.0±0.2)	8	30/60	300/1000	15/30
GJXFH-2	2	(2.0±0.2)×(3.0±0.2)	8.5	30/60	300/1000	15/30
GJXFH-4	4	(2.0±0.2)×(3.0±0.2)	10	30/60	300/1000	15/30
GJXH-1	1	(2.0±0.2)×(3.0±0.2)	9	30/60	300/1000	15/30
GJXH-2	2	(2.0±0.2)×(3.0±0.2)	9.5	30/60	300/1000	15/30
GJXH-4	4	(2.0±0.2)×(3.0±0.2)	10	30/60	300/1000	15/30

Technical data:

strength member	material	Galvanized steel wire/FRP/KFRP
strength member	diameter	2*(0.5~0.8)mm
Self support Messenger wire	material	Galvanized steel wire
Self support Messenger wire	diameter	1.0mm
Outer sheath	material	LSZH
Outer sheath	diameter	1.8±0.2mm
Cable size (Height * width)	2.0(±0.1) mm × 5.2(±0.2)mm
Cable sheath thickness	Max. 0.8mm/Min. 0.4mm
Messenger sheath thickness	0.5~0.7mm
Cable weight	1~2core	18.2KG
	4-6 core	18.5KG
	8~24core	54KG

G.652D G.657A LSZH PVC Jacket 2 Core FTTH Optical Fiber Drop Cable

More products

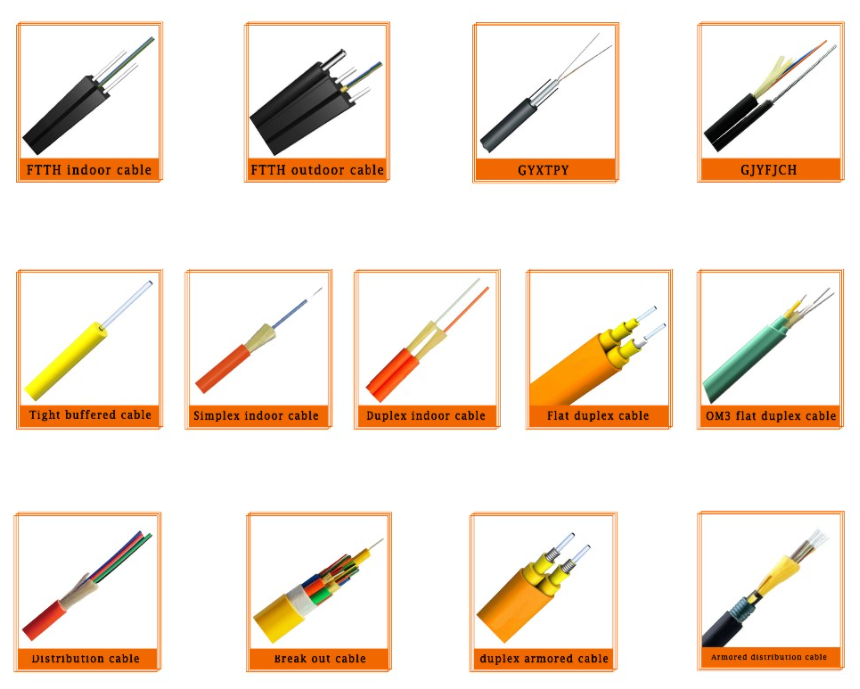

Indoor cable

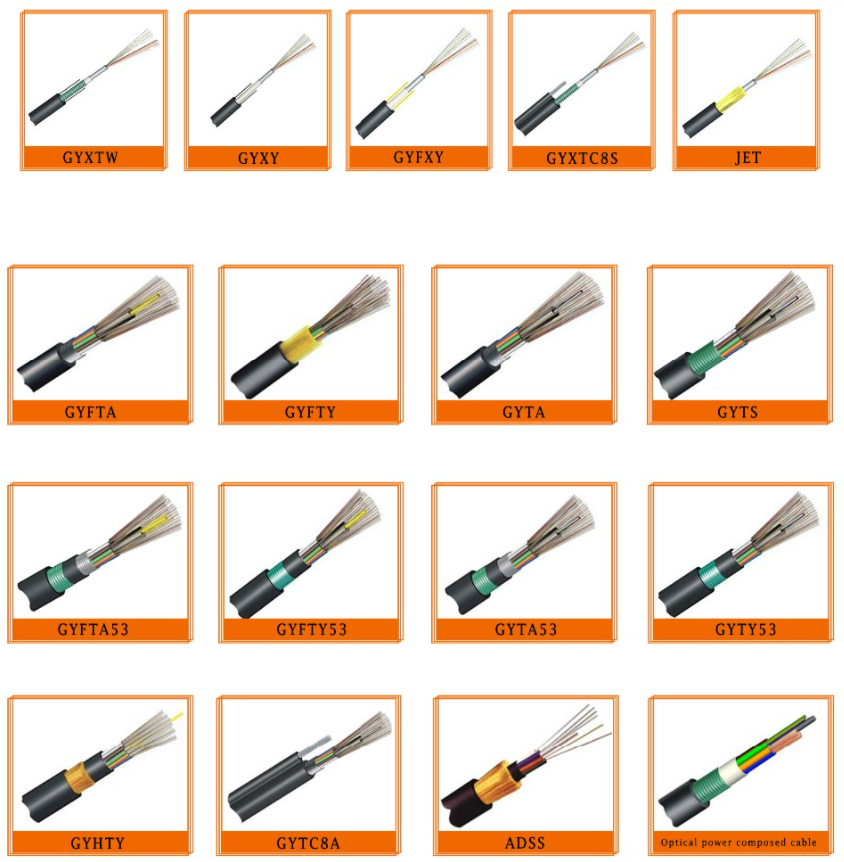

Outdoor cable

FAQ

1. Are you the real manufacturer?
Us. We are the real manufacturer with 15 year’s history.

2. What’s the MOQ?
Us. The MOQ of Fiber Optic cable is 1km.

3. What’s delivery time?
Us. The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.

3. Can you supply customized products and logo?
Yes. We supply OEM service. You can send us your drawings.
