Indoor Outdoor 1 2 4 6 12 24 Core Single Mode FTTH Aerial Drop Cable

Brand Name : High quality Indoor Outdoor 1/2/4/6/12/24 Core flat fiber optic cable , Single Mode FTTH Aerial drop cable

Model Number : GYTS GYFTY GJYXCH GYXTW ADSS

Certification : ISO9001

Place of Origin : China

MOQ : 1KM

Price : USD0.45-USD16/Km

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 20000 Kilometre / Month

Delivery Time : 5~20 DAYS

Packaging Details : 1-2KM/Roll/Carton Box

Jacket : LSZH/PVC/HDPE

Outer Sheath Color : Orange

Fiber Type : OM3

Application : Telecommunication

Strength Member : Aramid Yarn/Metal wire

Core : 4/6/8/12

Product Name : High quality Indoor Outdoor 1/2/4/6/12/24 Core flat fiber optic cable , Single Mode FTTH Aerial drop cable

Contact Now

High quality Indoor Outdoor 1/2/4/6/12/24 Core flat fiber optic cable , Single Mode FTTH Aerial drop cable

* special curved optical fiber, providing greater bandwidth and enhanced network transmission characteristics;
* two parallel fiber optic cable, FRP has a good compression performance, can protect the fiber;
* cable structure is simple, light weight, strong practical;
* unique groove design, easy peeling, convenience for connect, and simplify installation and maintenance;
* LSNHP fire-retardant jackets, environmental protection and safety.

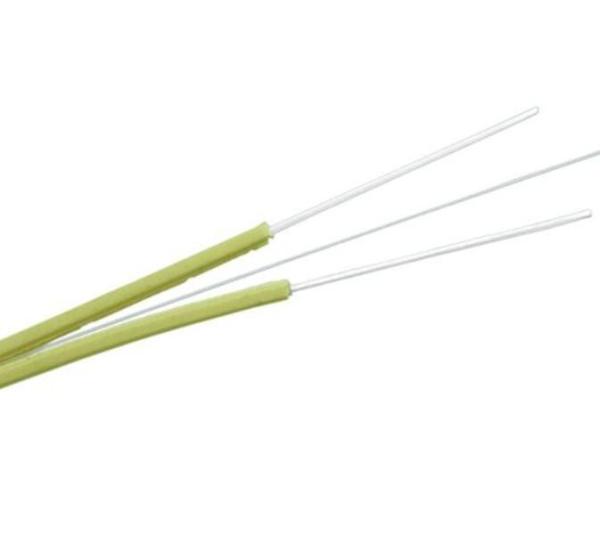

Descriptions: The struture of indoor optical FTTH cable :In the centre is the optical communication unit,with the parallel non-metical enhanced FRP of the two side.The sheath materiar is LSZH or PVC

Fiber Characteristic:

Cable code

Fiber

Count

Cable diameter

mm

Cable

weight

Kg/km

Tensilse

Strength

Long/Short term

N

Crush

Resistance

Long/Short term

N

Bedning

Radius

Dynamic/Static

mm
GJXFH-1 1 (2.0±0.2)×(3.0±0.2) 8 30/60 300/1000 15/30
GJXFH-2 2 (2.0±0.2)×(3.0±0.2) 8.5 30/60 300/1000 15/30
GJXFH-4 4 (2.0±0.2)×(3.0±0.2) 10 30/60 300/1000 15/30
GJXH-1 1 (2.0±0.2)×(3.0±0.2) 9 30/60 300/1000 15/30
GJXH-2 2 (2.0±0.2)×(3.0±0.2) 9.5 30/60 300/1000 15/30
GJXH-4 4 (2.0±0.2)×(3.0±0.2) 10 30/60 300/1000 15/30
Item
Technology parameter
Cable type
Drop Cable
Cable Count
1 2 4 6 8 12
Fiber color
Green, Yellow
Fiber type
9/125 (G657A2)
Sheath color
Black and white
Sheath material
LSZH
Cable dimension (mm)
3.0(±0.1)*2.0(±0.1); 5.2(±0.1)*2.0(±0.1)
Cable weight (Kg/km)
15
Min. bending radius (mm)
10 (Static) 25 (Static) 30 (Static) 60 (Static)
Attenuation (dB/km)
0.4 at 1310nm, 0.3 at 1550nm
Short term tensile ( N)
200; 600
Crush resistance (N/100mm)
1000; 2200
Operation temperature (℃)
-20~+70℃
Technical data:
strength member
material
Galvanized steel wire/FRP/KFRP
diameter
2*(0.5~0.8)mm
Self support Messenger wire
material
Galvanized steel wire
diameter
1.0mm
Outer sheath
material
LSZH
diameter
1.8±0.2mm
Cable size (Height * width)
2.0(±0.1) mm × 5.2(±0.2)mm
Cable sheath thickness
Max. 0.8mm/Min. 0.4mm
Messenger sheath thickness
0.5~0.7mm
Cable weight
1~2core
18.2KG
4-6 core
18.5KG
8~24core
54KG

Mechanical and Environmental Characteristics

Items Unite Specifications
Tension(Long Term) N 500
Tension(Short Term) N 1000
Crush(Long Term) N/10cm 1000
Crush(Short Term) N/10cm 2200
Min. Bend Radius(Dynamic) mm 20D
Min. Bend Radius(Static) mm 10D
Installation Temperature ℃ -20~+60
Operating Temperature ℃ -40~+70
Storage Temperature ℃ -40~+70
Indoor Outdoor 1 2 4 6 12 24 Core Single Mode FTTH Aerial Drop Cable
Indoor Outdoor 1 2 4 6 12 24 Core Single Mode FTTH Aerial Drop Cable Indoor Outdoor 1 2 4 6 12 24 Core Single Mode FTTH Aerial Drop Cable
Indoor Outdoor 1 2 4 6 12 24 Core Single Mode FTTH Aerial Drop Cable
Indoor Outdoor 1 2 4 6 12 24 Core Single Mode FTTH Aerial Drop Cable
Indoor Outdoor 1 2 4 6 12 24 Core Single Mode FTTH Aerial Drop Cable
More products
Indoor Outdoor 1 2 4 6 12 24 Core Single Mode FTTH Aerial Drop Cable

Packaging & Shipping

1) Packing Lengths: 1000m/roll, 2000m/roll. Other lengths available according to client's Request;

2) Inner packing: Wooden reel, plastic reel.

3) Outer packing: Carton box, pull box, pallet.

4) Other packing available according to client's Reques.

FAQ

1. Are you the real manufacturer?
Us. We are the real manufacturer with 15 year’s history.

2. What’s the MOQ?
Us. The MOQ of Fiber Optic cable is 1km.

3. What’s delivery time?
Us. The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.

4. How to Store the Optical Fiber Cable Properly?
Us. Store the drum indoor before using, the drum should place sideways not on the end.

5. Can you supply customized products and logo?
Yes. We supply OEM service. You can send us your drawing.
