FAQ
1.Are you the real factory
Yes,we are the real factory with 20 years’ history.
2.What is your fiber brand ?
Fiber brands including : HANXIN,MECABLE,NECERO
3.What is your main products
Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables; ADSS;
Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.
4.Product quality guarantee period?
25 years’ Guarantee for fiber optic cable
5.Do you have certificate for raw material ?
We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.
6.What is your delivery time?
Within 24 hours for 30KM normal kinds of fiber optic cable;
1 ~2 days for fiber optic patch cords with 10000 connectors.
7.MOQ: what is your minimum quantity
MOQ for fiber optic cables: 1KM
There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.
8.Do you have distributor in other country or domestic?
Until now, we sell our products to customers directly. And factory price could be offered.
9.Payment:
For large orders: T/T, L/C
For small orders: T/T,Western Union and Paypal are acceptable.
10.Shipping & Delivery:
For large orders: by sea (LCL or FCL)
For small orders: by sea (LCL), by air or by courier services,any of which is optional.

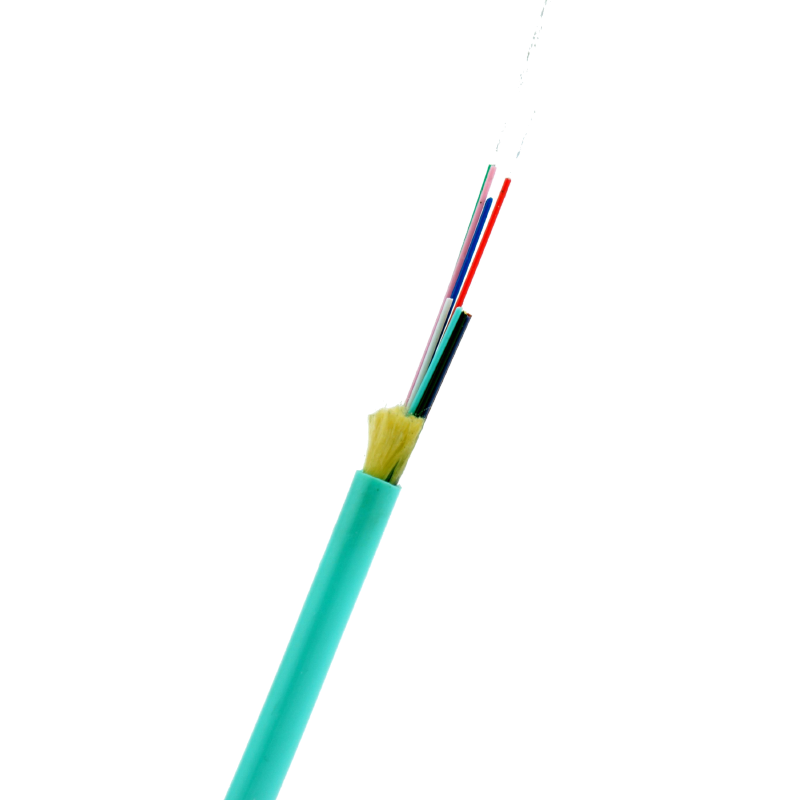

FTTH Tight Buffer GJFJV Technology Indoor optical cable 24 core fiber optic cable
Product Description:
GJFJV Simplex cable use single 900um or 600um tight buffer fiber as optical commucation medium , the tight buffer fiber wrapped with a layer of aramid yarn as strength member uinits, and the cable is completed with a PVC or LSZH (low smoke ,Zero halogen, Flame-retardant ) jacket.
Standards:
Cable complies with Standard YD/T 769-2003.
Storage/Operating Temperature: -40°C to + 70°C
Products Features:
Small diameter, light weight,flame retardant,excellent strippability
Low-attenuation, High flexibility
SINGLE MODE GJFJV GJFJH INDOOR DISTRIBUTION FIBER OPTIC CABLE
FIBER CORE:G652D,G657A1,G657A2,G655C,
MULTI MODE GJFJV GJFJH INDOOR DISTRIBUTION OUT FIBER OPTIC CABLE
FIBER CORE:OM1,OM2,OM3,OM4
| Product Name | GJFJV Fiber Optic Cable Indoor |
| Fiber Count | 12,24,48,72,92,144 Fibers |
| Construction | Stranded Loose Tube |
| Fiber Type | Singlemode G.652D |
| Outer Jacket Material | PVC or LSZH |
| Bandwidth | 850nm or 1300 |
| Transport Temperature | -20℃～﹢60℃ |
| Operation Temperature | -20℃ to +60℃ |
Cable diameter
| | MPC-02 | MPC-04 | MPC-06 | MPC-08 | MPC-10 | MPC-12 |
| Cable Diameter(mm) | 4.1±0.25 | 4.8±0.25 | 5.1±0.25 | 6.2±0.25 | 6.5±0.25 | 6.8±0.25 |
| Cable Weight(kg/km) | 12 | 20 | 24 | 29 | 32 | 35 |
| Tight Buffer Fiber Diameter | 900±50μm |
The tight buffered fibers which are sheathed with special buffer material to protect the fiber are stranded around the FRP(Fiber reinforced plastic),then, a layer of Aramid yarn is applied as a strength member,the cable is copleted with PVC jacket.(02-12 fiber, Stranded structure, FRP Strength member,1-fiber subunit(Φ900μm Tight buffer, Aramid yarn),PVC jacket.
Product Tags:
|
|
FTTH Tight Buffer Indoor Fiber Optic Cable 24 Core GJFJV For Aerial And Duct Images
|
