GJFJH 10.5mm 24pcs Single Mode Optical Fiber For Premises Distribution System

Name: GJFJH 105mm 24pcs Single Mode Optical Fiber For Premises Distribution System
Brand: Weiroct
Price: 1 USD

China GJFJH 10.5mm 24pcs Single Mode Optical Fiber For Premises Distribution System wholesale

Brand Name : Weiroct

Model Number : GJFJH

Certification : ISO-9001

Place of Origin : Hubei, China

MOQ : 1KM

Price : USD

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 2000 Kilometre / Month

Delivery Time : 5~20 DAYS

Packaging Details : 2KM/Roll/Carton Box

Single-mode Fiber : G657A1/ G657A2

Jacket Color : Yellow

Fiber Count : 24 Cores

FRP : 0.5mm

Jacket : LSZH

Tight Buffer : 24pcs

Aramid Yarn : 16 Standard Yarn

OD : 10-10.5mm

Application : Indoor

Fiber Type : OM1

Contact Now

Indoor optic cable GJFJH 12 24core single mode G652D G657A fiber optic cable

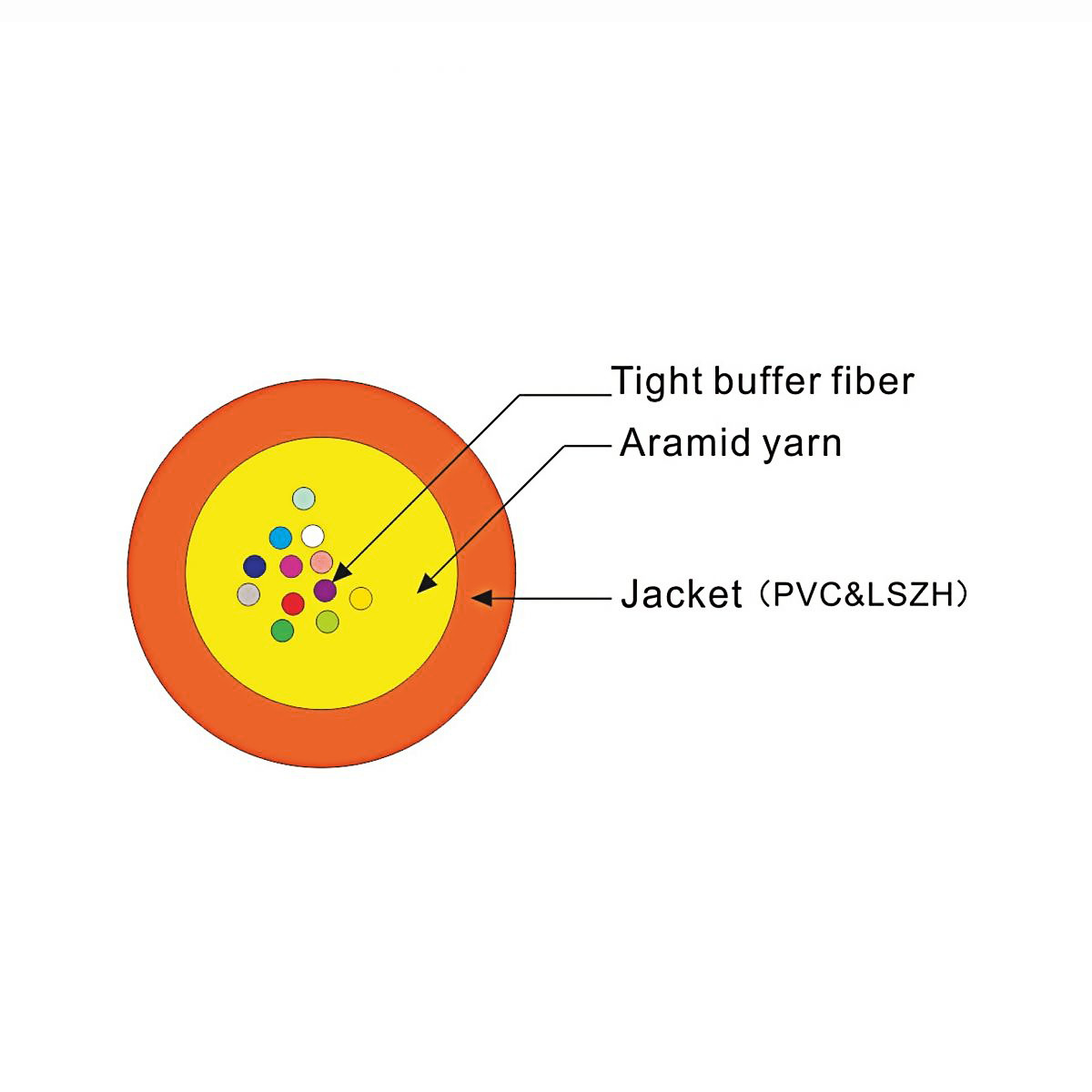

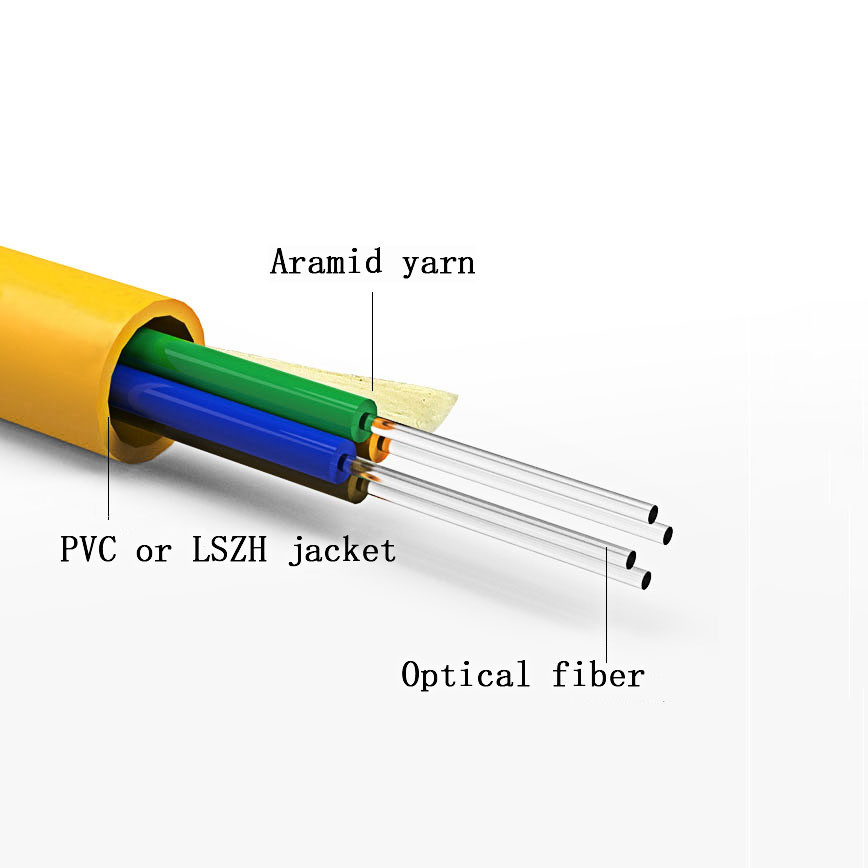

Product Construction

Fiber:

250µm color fibers

Strength Member:

Aramid Yarn

Outer Jacket:

Thermoplastic urethane or UV and Flame resistant LSZH jacket

Features

Good mechanical and environmental characteristics.

Excellent abrasion resistance and cold temperature workability.

Solf, flexible, easy to lay and splice, and with big capacity transmission.

Applications

Used in access network oras access cable from outdoorto indoor in customer premises network.
Used as access building cable in premises distribution system.

Optical Characteristics

Fiber Type	Attenuation		Overfilled launch Bandwidth	Effective Modal Bandwidth	10GB/S Ethernet link length	Min Bending Radius
Conditions	1310/1550nm	850/1300nm	850/1300nm	850nm	850nm
Unit	dB/km	dB/km	MHZ.km	MHZ.km	m	mm
G652D	0.36/0.22					16
G657A1	0.36/0.22					10
G657A2	0.36/0.22					7.5
50/125		3.0/1.0	≥500/500			30
62.2/125		3.0/1.0	≥200/500			30
OM3		3.0/1.0	≥1500/500	≥2000	≥300	30
OM4		3.0/1.0	≥3500/500	≥4700	≥550	30
B1-OM3		3.0/1.0	≥1500/500	≥2000	≥300	7.5
B1-OM4		3.0/1.0	≥3500/500	≥4700	≥550	7.5

Structure and Technical Specfications GJFJH(LSZH)

Cable Count	Cable Diameter (mm)	Cable Weight (kg/km)	Tensile Strength (N/100mm)		Crush Resistance (N/100mm)
Cable Count	Cable Diameter (mm)	LSZH jacket	Short Term	Long Term	Short Term	Long Term
1-2	3.0	12	1000	400	2200	1000
4-12	3.5	15	1000	400	2200	1000
12-24	4.2	20	1000	400	2200	1000

Fiber Count	Outside OD(mm)	Tight Buffer OD(mm)	Weightkg/km	Tensile Strength(N)		Crush Resistance(N/100mm)		Bending Radius(mm)
2	3	0.9	15	600	200	1000	200	20D	10D
4	5	0.9	22	600	200	1000	200	20D	10D
6	5	0.9	23	600	200	1000	200	20D	10D
8	5.5	0.9	28	600	200	1000	200	20D	10D
12	6	0.9	38	600	200	1000	200	20D	10D
16	7.2	0.9	42	600	200	1000	200	20D	10D
24	8.3	0.9	58	600	200	1000	200	20D	10D
48	10	0.9	96	600	200	1000	200	20D	10D

GJFJH 10.5mm 24pcs Single Mode Optical Fiber For Premises Distribution System

Product Tags:

10.5mm Single Mode Optical Fiber

GJFJH Single Mode Optical Fiber

24pcs Tight Buffer Fiber

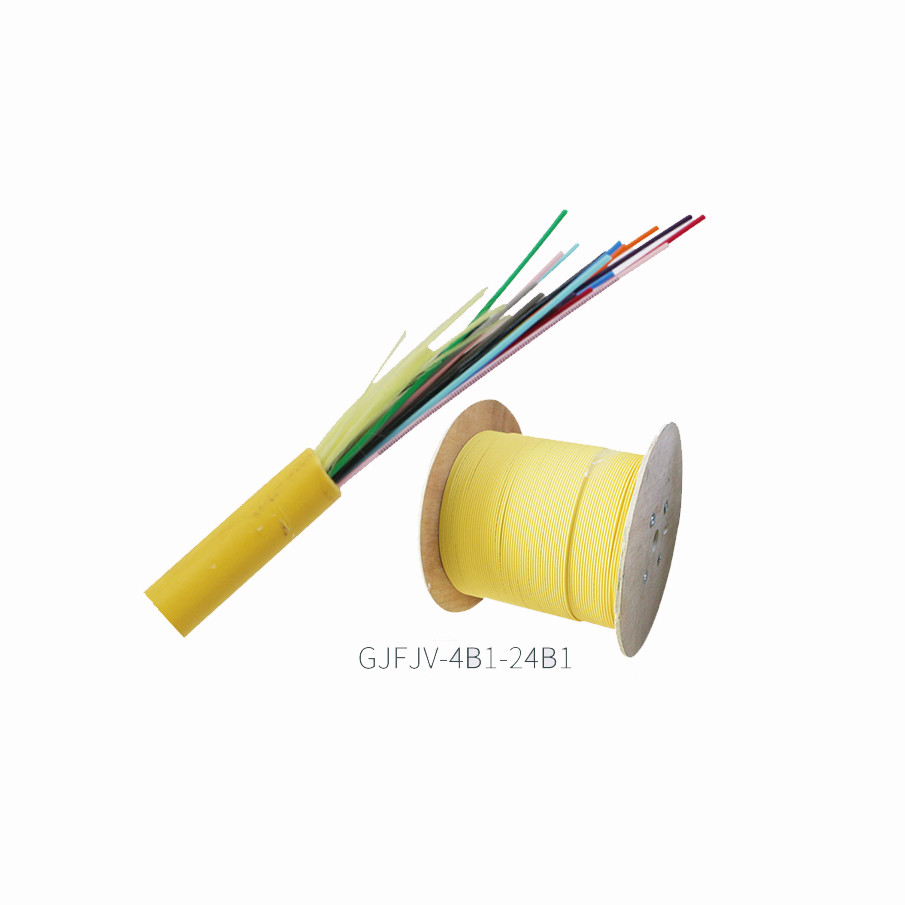

GJFJH 10.5mm 24pcs Single Mode Optical Fiber For Premises Distribution System Images
