Indoor All-Dielectric Ftth 24 72 Core Fiber Optic Cable Gjfzy
Product Description

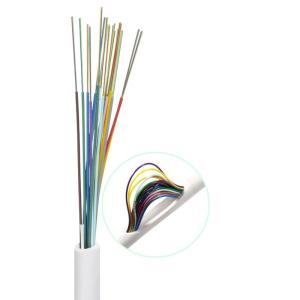

GJFZY is a new type of detachable indoor optical cable. Its structure consists of several colored optical fibers embedded in a loose sleeve made of LSZH to form an optical unit. Then several optical units are combined together. Finally, the LSZH jacket is extruded and two FRPs are placed symmetrically in the jacket.
Optical Bundle Drop Cable Feature
All-Dielectric, FRP Strenghthen, LSZH/LSOH Sheath, PBT Loose Tube, Optical fiber Bundle Drop Cable
CPR Certificate No.: 1008-CPR-MC 69261230 0001
Optic Fiber: G652D or as request
Fiber Count: 4 core, 12 core, 24 core, 48 core, 96 core, 144 core or as request.
Compound: Fiber Jelly (with/ without)
Outer Sheath: low smoke zero halogen (LSZH, LSOH)
strengthen member: parallel FRP, non-metal
Performance Indicators
Application: FTTX Network,MetropolitanAreaNetwork,and Access Network
Laying Method: indoor cabling
For certificate or details, please kindly Send us Inquiry or Contact us
Guifeng Zhou (Alyssa)
Zhejiang Headway Communication Equipment Co., Ltd.
Skype: zhouguifeng12
Phone/WeChat/WhatsApp:+8615977189345
Fiber Optic Cable Factories, CE ISO TLCCertificates
| Fiber Model | G.657A2 |
| Module | Material | LSZH |
| Thickness | 0.17(±0.02)mm |
| Diameter | 0.9(±0.05)mm |
| Strength Member | Material | FRP |
| Diameter | 1.0(±0.05)mm |
| No. | 2 |
| Outer Sheath | Material | LSZH-FR |
| Color | White |
| Cable Diameter | 10.5±0.5 | 11.5±0.5 |
| Max. allowable tension
(Short-term) | 600N |
| Max. allowable tension
(Long-term) | 200N |
| Crush resistance test | 1000N/10cm |
| Min. bending radius | Static | 105mm | 115mm |
| dynamic | 210mm | 230mm |
| Temperature range
(℃) | Installation | -5~+60 |
| Transport&Storage | -40~+70 |
| Operation | -5~+60 |
