OM1 Simplex Duplex G652D 3m LSZH Fiber Optic Patch Cord

Name: OM1 Simplex Duplex G652D 3m LSZH Fiber Optic Patch Cord
Brand: Weiroct
Price: 2 USD

China OM1 Simplex Duplex G652D 3m LSZH Fiber Optic Patch Cord wholesale

Brand Name : Weiroct

Model Number : SM MM

Certification : ISO-9001

Place of Origin : China

MOQ : 50pcs

Price : USD2-12/set

Payment Terms : T/T, L/C, Western Union, MoneyGram

Supply Ability : 1000pcs/day

Delivery Time : 5~20 DAYS

Packaging Details : 250pcs/Carton

Product Type : Simplex Duplex G652D SC LC FC ST Connector Jumper SM UPC PC APC 3m LSZH Fiber Optic Patch Cord

Use : FTTH

Jacket Material : LSZH/PVC

Connector Type : SC/LC/FC/ST/MTRJ/MU

Cable O.D. : 2.0/3.0mm

Fiber Mode : OM1

Fiber Core : 12F, 24F

Cable Length : 1m/3m/5m/15m/50m/60m/80m/100m or Customized

Wavelength : 1310/1550nm

Quality Control : 100% Test Before Delivery

Contact Now

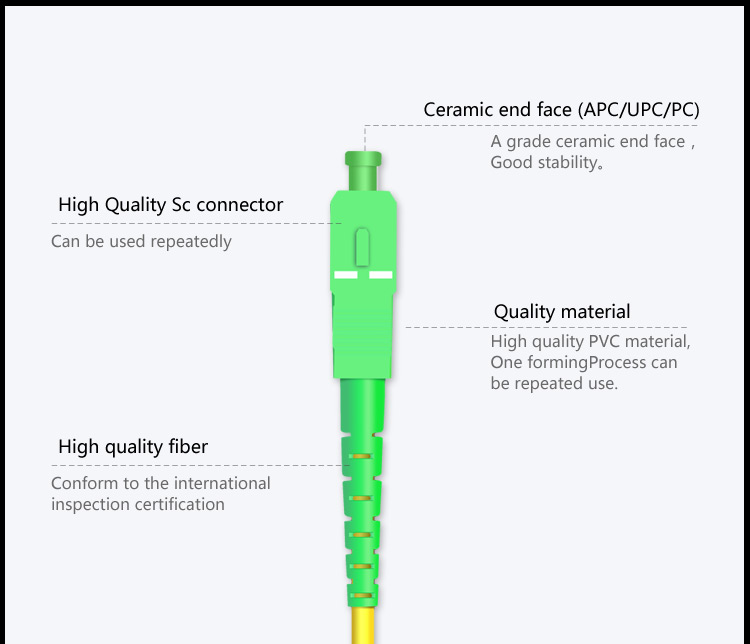

Simplex Duplex G652D SC LC FC ST Connector Jumper SM UPC PC APC 3m LSZH Fiber Optic Patch Cord

Support Ordering Parameters
1) Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
2) Ferrule End-face: PC, UPC,APC
3) Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
4) Cable Quantity: Simplex, Duplex, 6cores ,12corns, 16cores, 24cores, 36cores, 48cores...
5) Cable Diameter: φ3.0mm,φ2.0mm, φ0.9mm
6) Cable Length: 1, 2, 3 meter or customized
7) Cable type: PVC, LSZH, OM3, OFNR, OFNP, Plenum ,Armored
8) Patch cord/pigtail

Features
Low insertion loss and back reflection loss
Good echangeability Good Durability
High temperature stability
CE,ROHS,FCC
Superior quality standard PC/UPC/APC polishing

Applications
Cabling system, ODF
Optical fiber communication systems
Optical fiber data transmission
Telecom net
Optical fiber sensor
Optical fiber test equipment
Optical fiber communication system
FTTH, LAN,PON & Optical CATV

Parameters	Standard Fiber Cable Assemblies
Fiber Type	SM(G.652/G657A) / MM(OM1/0M2/OM3/OM4/OM5)
Jacket Materials	LSZH/OFNR/PVC
Connector Type	SC/LC/ST/LC/MU/DIN/SMA/MTRJ/MPO/E2000
Ferrule Materials	Ceramic
Testing Wavelengths	1310+30/1550+30nm / 850+30/1300+30nm
Insertion Loss(dB)	<0.25dB / <0.3dB
TIA/EIA-455-107	(PC/UPC/APC) / (PC/UPC)
Return Loss(dB)	>50dB(PC/UPC) />40dB
TIA/ELA-455-107	>60dB (APC) />40dB
Exchangeability	<20dB
Cable Assemblies	Pigtail/Simplex/Dupiex/Fan-out Patchcord
Operating Temperature(°C)	-10~+70
Storage Temperature(°C)	-40~+85
Package	1unit/bag

OM1 Simplex Duplex G652D 3m LSZH Fiber Optic Patch Cord

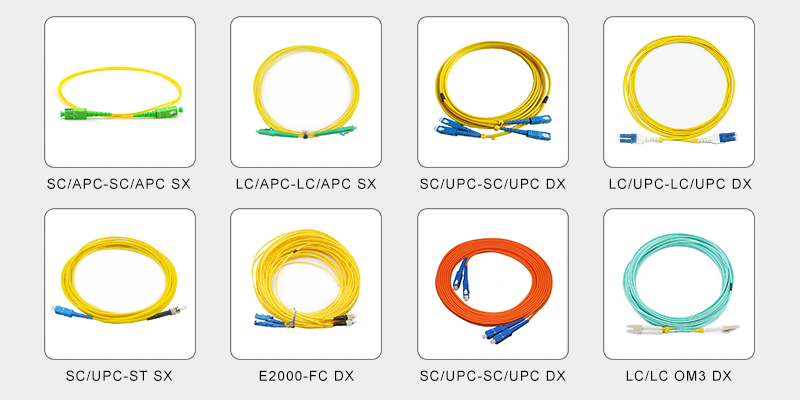

Other type

OM1 Simplex Duplex G652D 3m LSZH Fiber Optic Patch Cord

FAQ

Q1. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity.
Q3. Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
B. Secondly We quote according to your requirements or our suggestions.
C. Thirdly customer confirms the samples and places deposit for formal order.
D. Fourthly We arrange the production.
